SKYJET Cable Blowing Machine

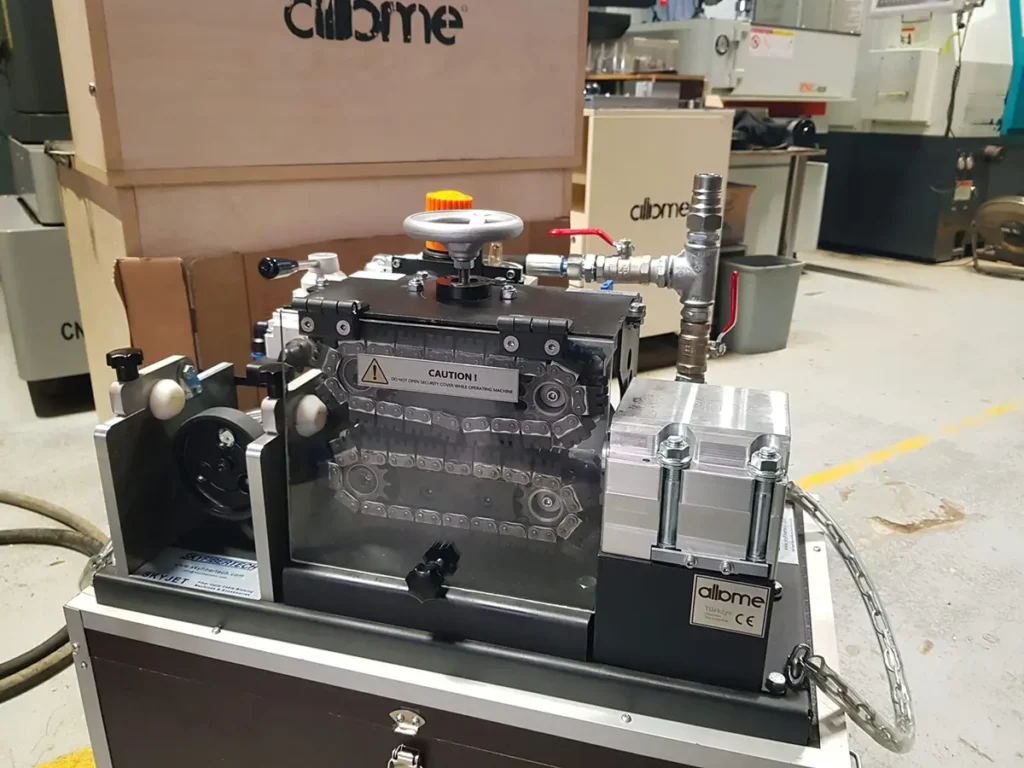

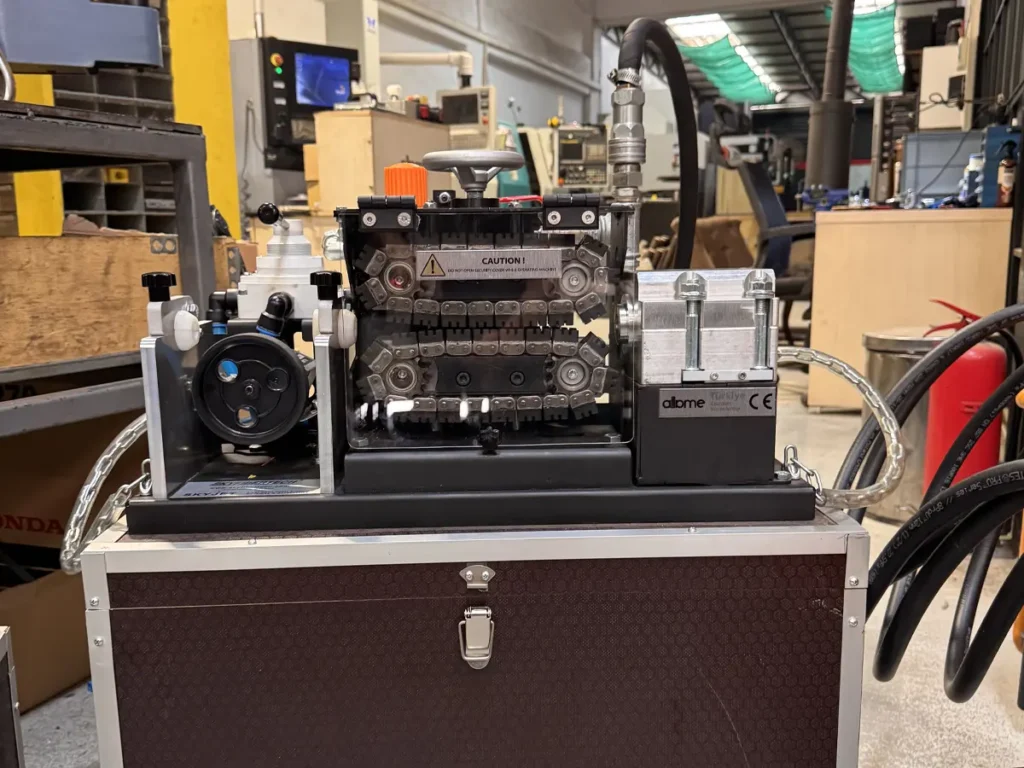

SkyJET is a machine used to blow fiber optic cables into HDPE pipes. It contains two pneumatic air motors. These engines work with high pressure air. Therefore, you only need to use an air compressor to blow the fiber optic cables into HDPE pipe.

Recommended minimum air pressure 12 bar / 10m³ / min. (40mm HDPE Pipe)
Do not forget that the recommended amount of air pressure is directly related to your Hdpe pipe diameter. For this reason, the amount of air that you will use is of great importance. You need to provide high pressure and flow rate air for long cable pulling .
If you are not sure about the compressor that you will use, you can get detailed information from your sales representative.

skyjet fiber cable blowing machine
Cable Blowing Machine SKYJET

40 mm Pipe Diameter for SkyJET

Standard SkyJET machine is produced for 40 mm pipe diameter. Regulating parts are produced for pipe diameters less than or greater than 40 mm. In cases where the pipe diameter is more than 40 mm, pipe fittings are given to the outlet box according to the desired line link diameter.
You must inform us of your pipe diameter with your order.

Easy Operation

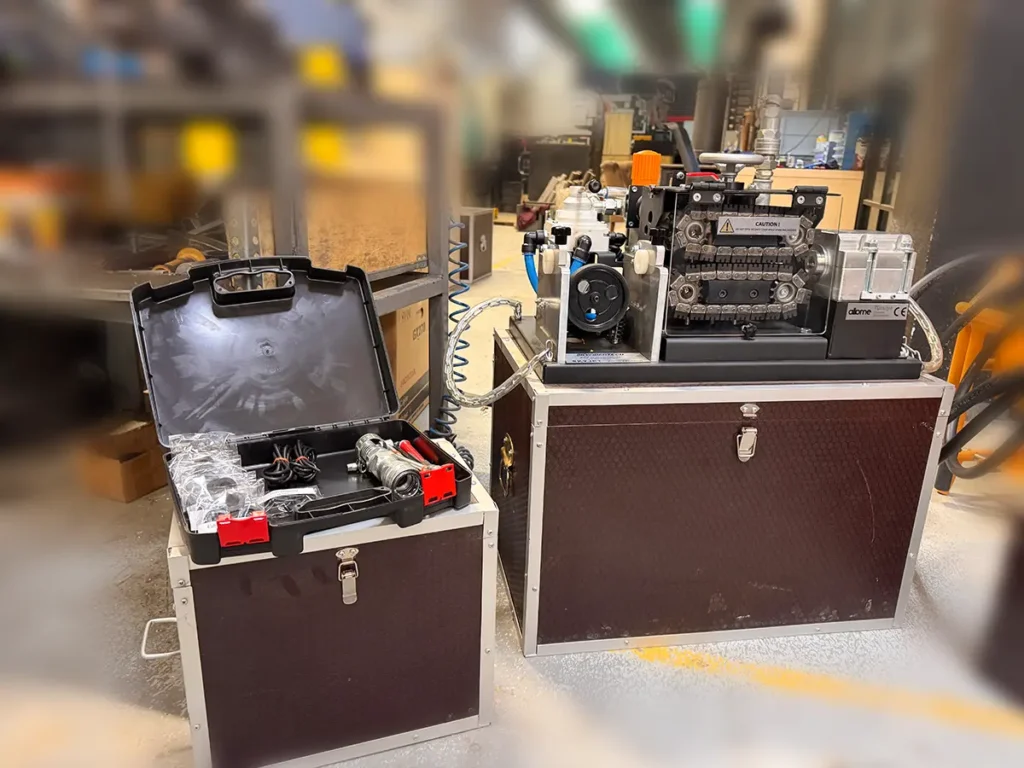

All parts and equipment required for the fiber optic cable installation process are provided with the machine. SkyJET takes its power from the air compressor and transmits it to the air motors. In this way, you do not need any additional power supply. You just need to assemble the compressor adapter on the machine. These adapters come with the machine as a kit. In addition, compressor connection apparatus are provided free of charge with the machine.

Cable Blowing Machine SKYJET
Cable Blowing Machine SKYJET

Standard Cable and Pipe Sizes

Standard cable and pipe sizes used in SkyJET Cable blowing machine
Standard Hdpe pipe sizes: 8mm-12mm-14mm-16mm-20mm-25mm-32mm
(With each cable diameter, cable pads and nutrings are also given.)

There are two sets of chains for Cable Diameters.

8mm-13mm Chain Set
14mm-20mm Chain Set

Hdpe Pipe Dimensions

Hdpe pipe sizes: 20mm-25mm-32mm-40mm-50mm-63mm

If you have a pipe diameter between these dimensions, please notify our sales representative.

Please contact us for further information or placing order.

Cable Blowing Machine SKYJET
Cable Blowing Machine SKYJET

SkyJET General Features

• Mechanical yardage meter that is resistant to rough weather conditions.
• Cable pusher Two simultaneous pneumatic air motors.
• Bi-directional (Forward-Backward) directed propulsion.
• Compressor air connection coupling.
• Fiber optic cable pads for different diameters (from 8mm to 20mm)
• HDPE pipe connectors for different diameters (from 14mm to 63mm)
• Special chain sets / 9mm-14mm / 14mm / 20mm.
• Separate sets of parts for each cable diameter.
• Semi-automatic axer working in different diameters.
• First-class materials and workmanship
• 2 year full warranty.
• 10 year spare parts guarantee.

Technicial Specifications

Pushing Force: 0 – 300 N
Pushing Speed: 0 – 150 m/dak
Cable Size : 8 – 20 mm
HDPE Pipe Diameter : 14 – 63 mm
MotorDrive : Air (Double Air Motor)
Air consumption to minimum recommended pipe diameter (at 12Bar):
0 – 25mm : 4m³/min 150 CFM
26mm – 30mm : 5m³/min 185 CFM
31mm – 35mm : 7m³/min 250 CFM
36mm – 40mm : 10m³/min 375 CFM
41mm – 44mm > : 12m³/min 450 CFM

Video for SKYJET

Photo Gallery for SKYJET

Fiber Optic Cable Diameter Ranges

fiber blowing machine diameters
