DrillSky Cable Blowing Machine

DrillSky Cable Blowing Machine

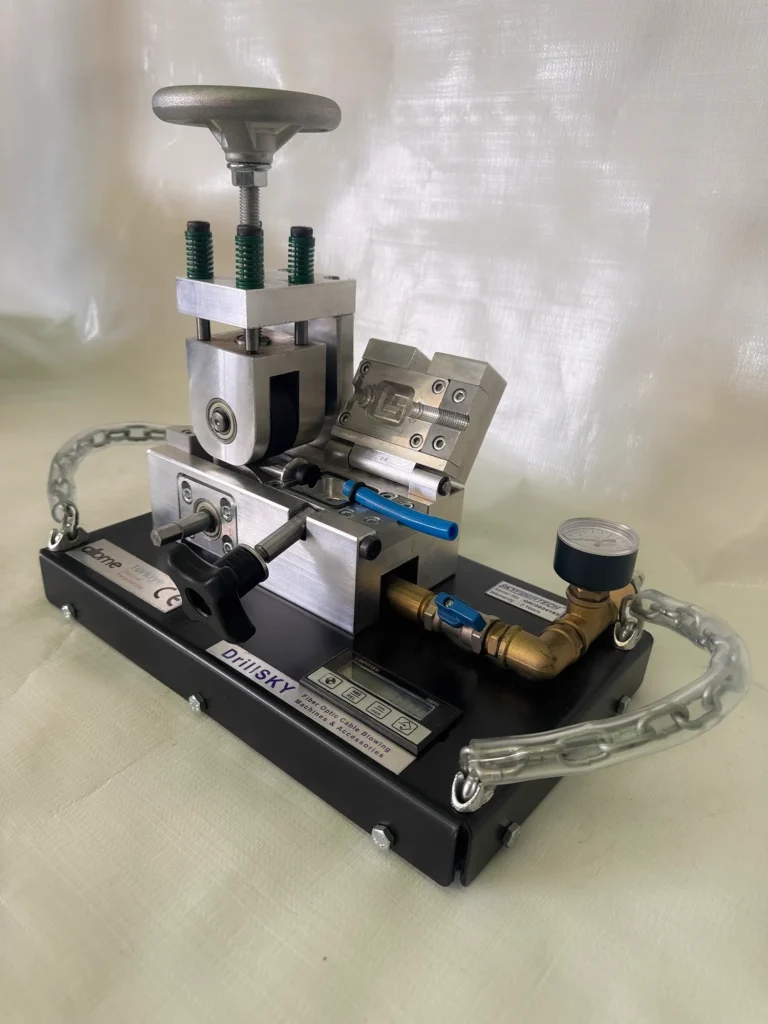

DrillSKY is a machine used to blow fiber optic cables into HDPE pipes. DrillSKY cable blowing machine performs blowing of fiber cables between 1mm and 6mm .

DrillSKY cable blowing machine works with the drilling machine and gets the pushing power from the external drilling machine.

During machine use, it is necessary to reduce the force of friction on the pipe with an external compressor. Suggested air consuption 7 Bar 1-2 m3/min (around 50-70 CFM depending on your duct diameter)

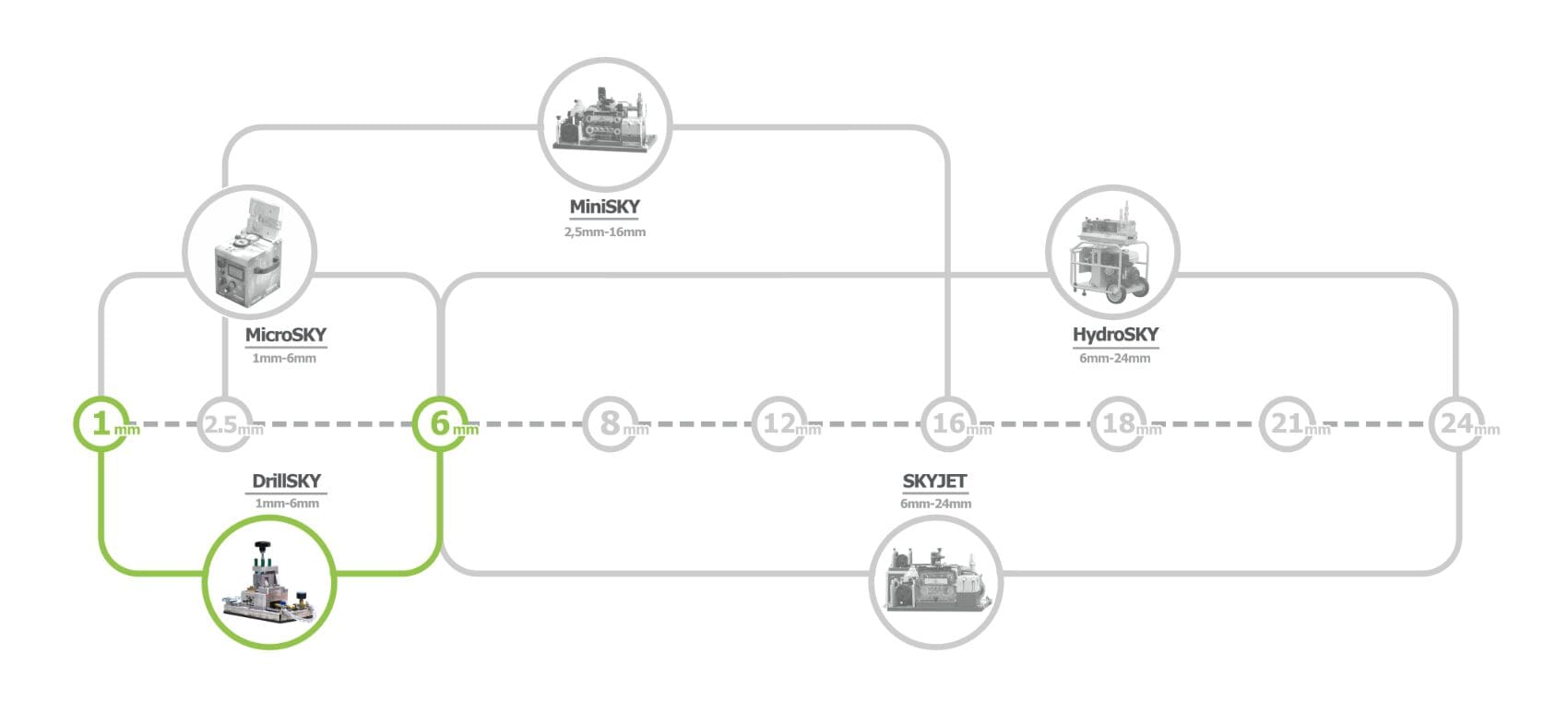

Fiber Optic Cable Diameter Range: 1mm-6mm.
HDPE Pipe Diameter Ranges: Can be adjusted optionally.

drillsky fiber optic cable blowing machine

Practical and Functional

MicroSKYfiber optic cable blowing machine allows you to pull fiber optic cables between 1mm-6mm quickly and reliably thanks to its easy and practical use.

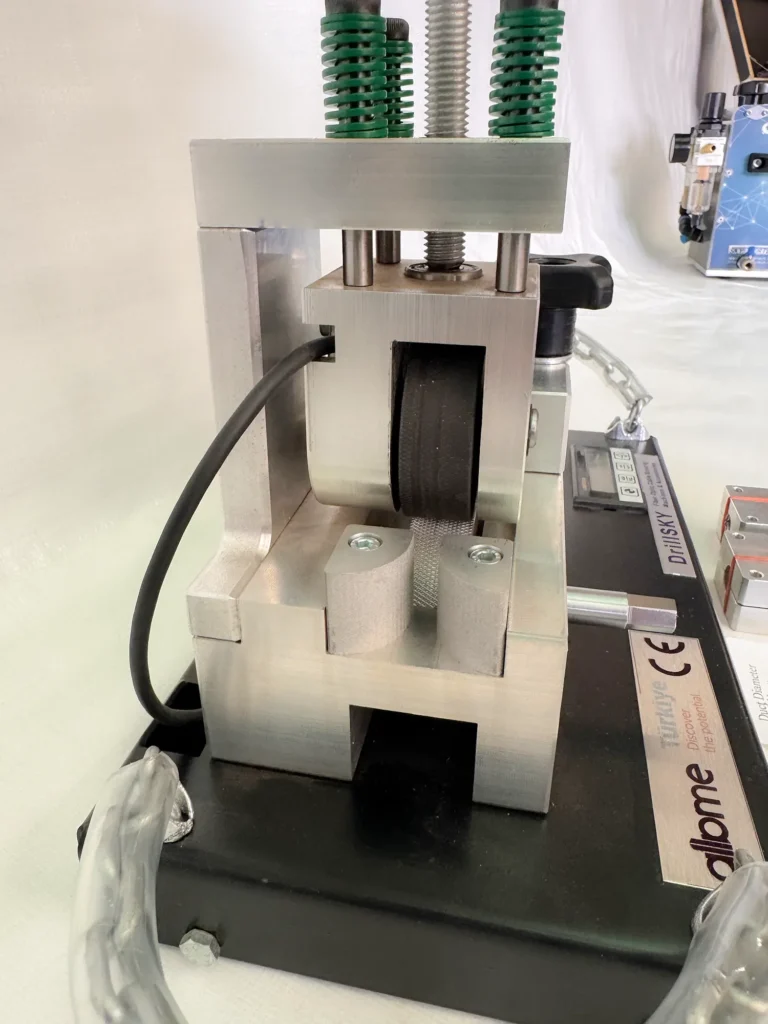

Our machine, which takes the compressive force from the electric motor, pushes the fiber optic cable into the HDPE pipe. Small and light weight makes it easy to carry around. One person can operate the machine.

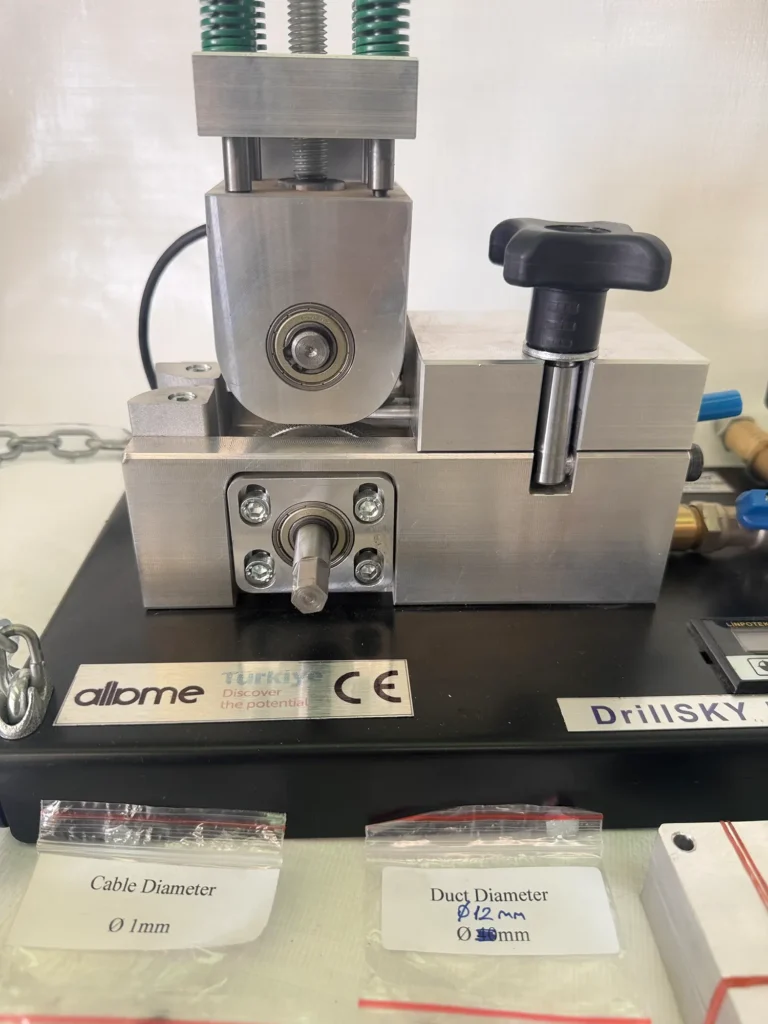

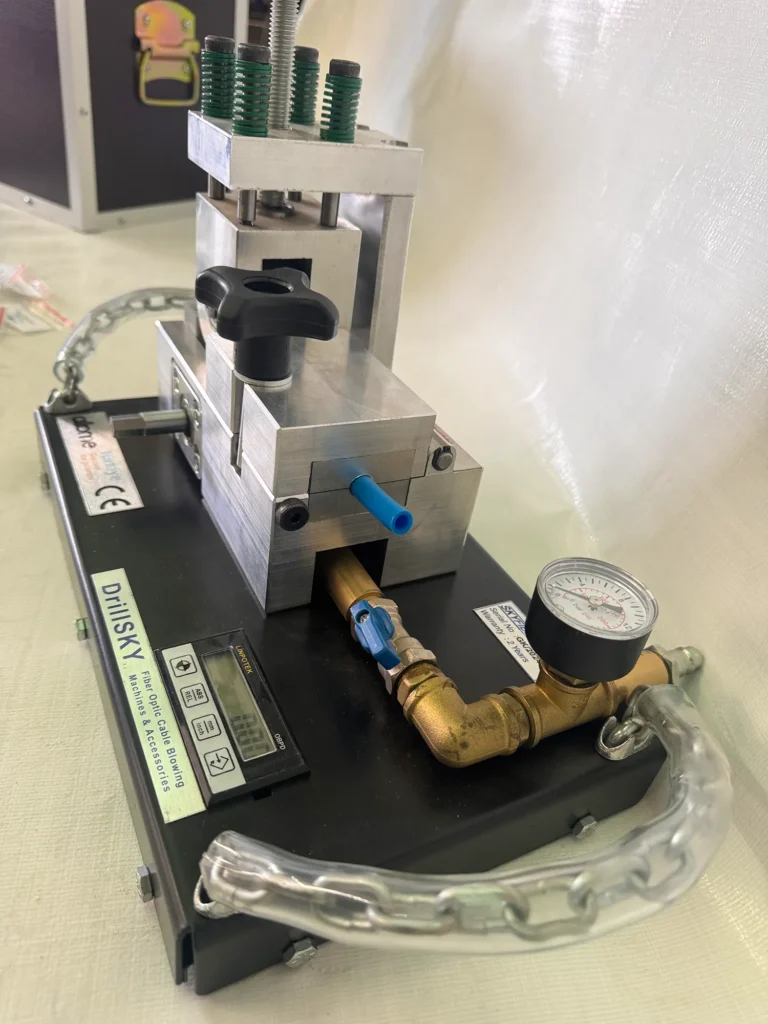

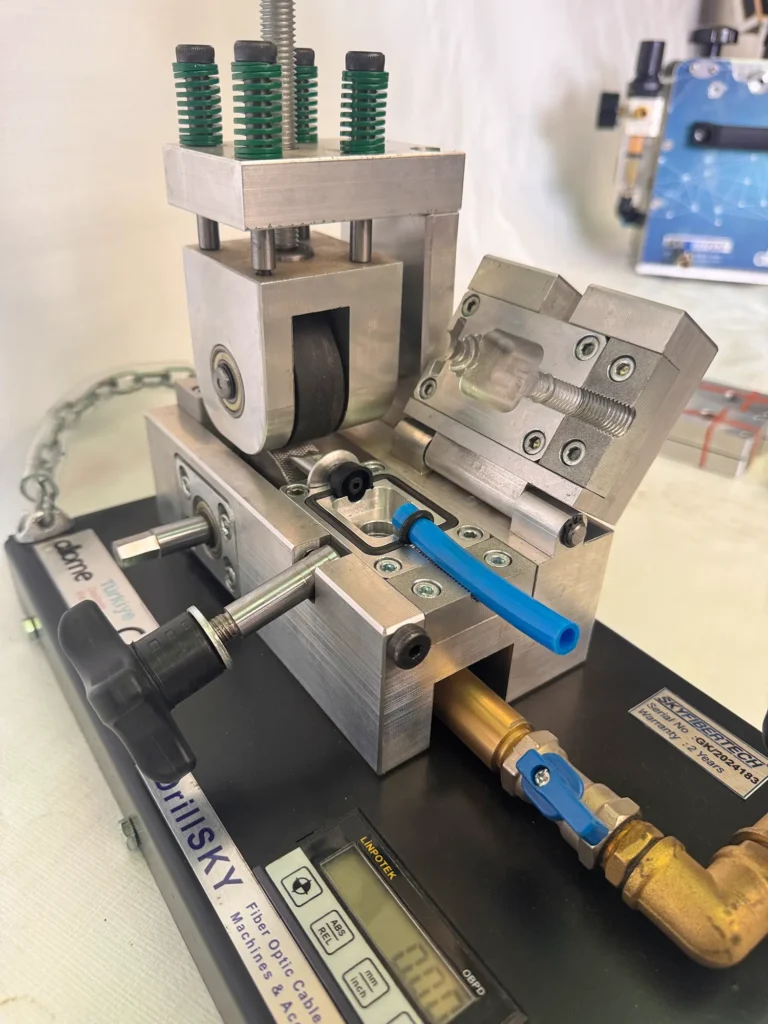

There is a digital meter counter in the machine. Thanks to this meter counter, you can quickly record the discarded cable meter without the need for an extra measuring device.

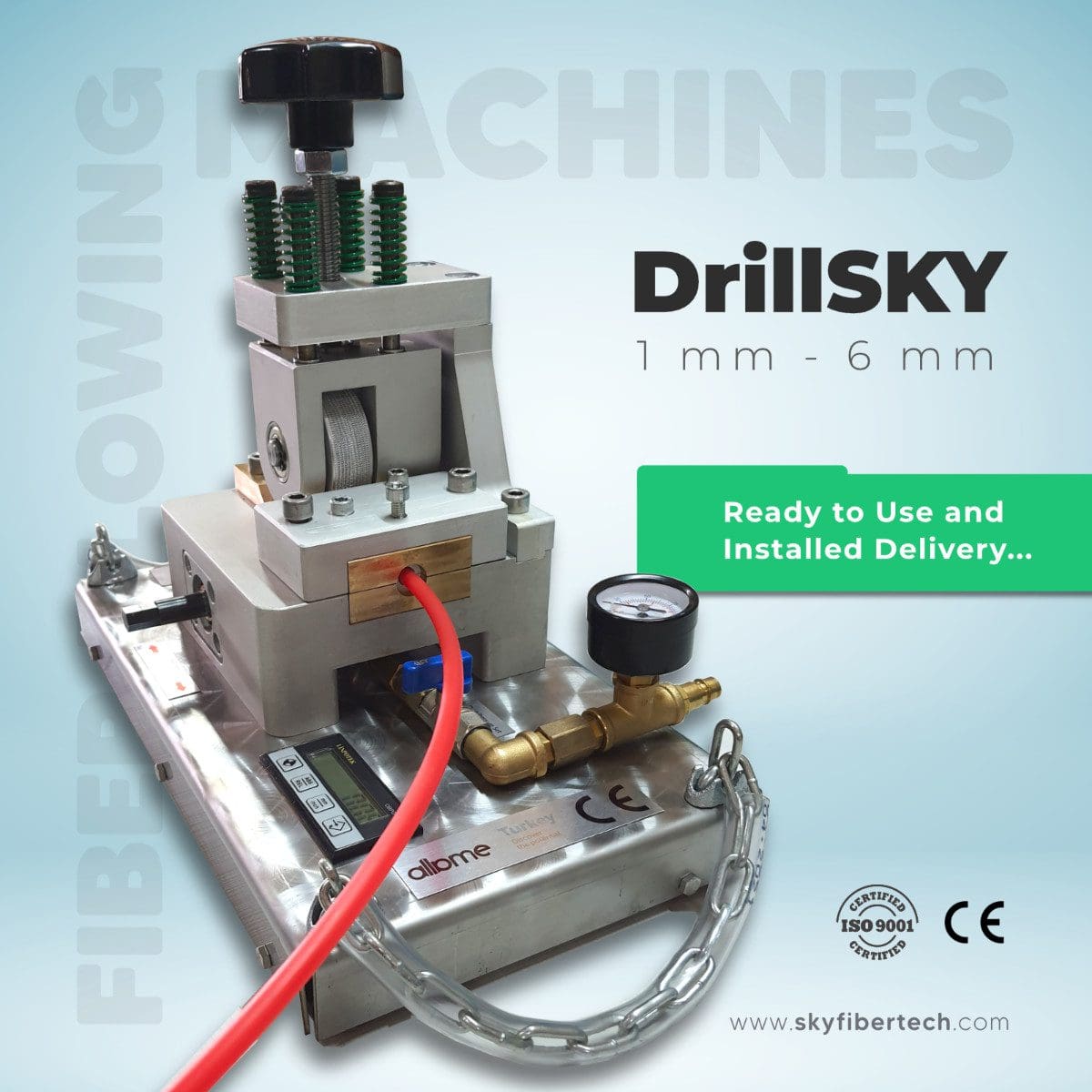

Ready to Use and Installed Delivery

DrillSKY cable blowing machine is delivered to our customers ready to use and installed. Machine production is started by requesting only cable and pipe diameters from our customers. In addition, there is an extra digital meter counter in the machine.

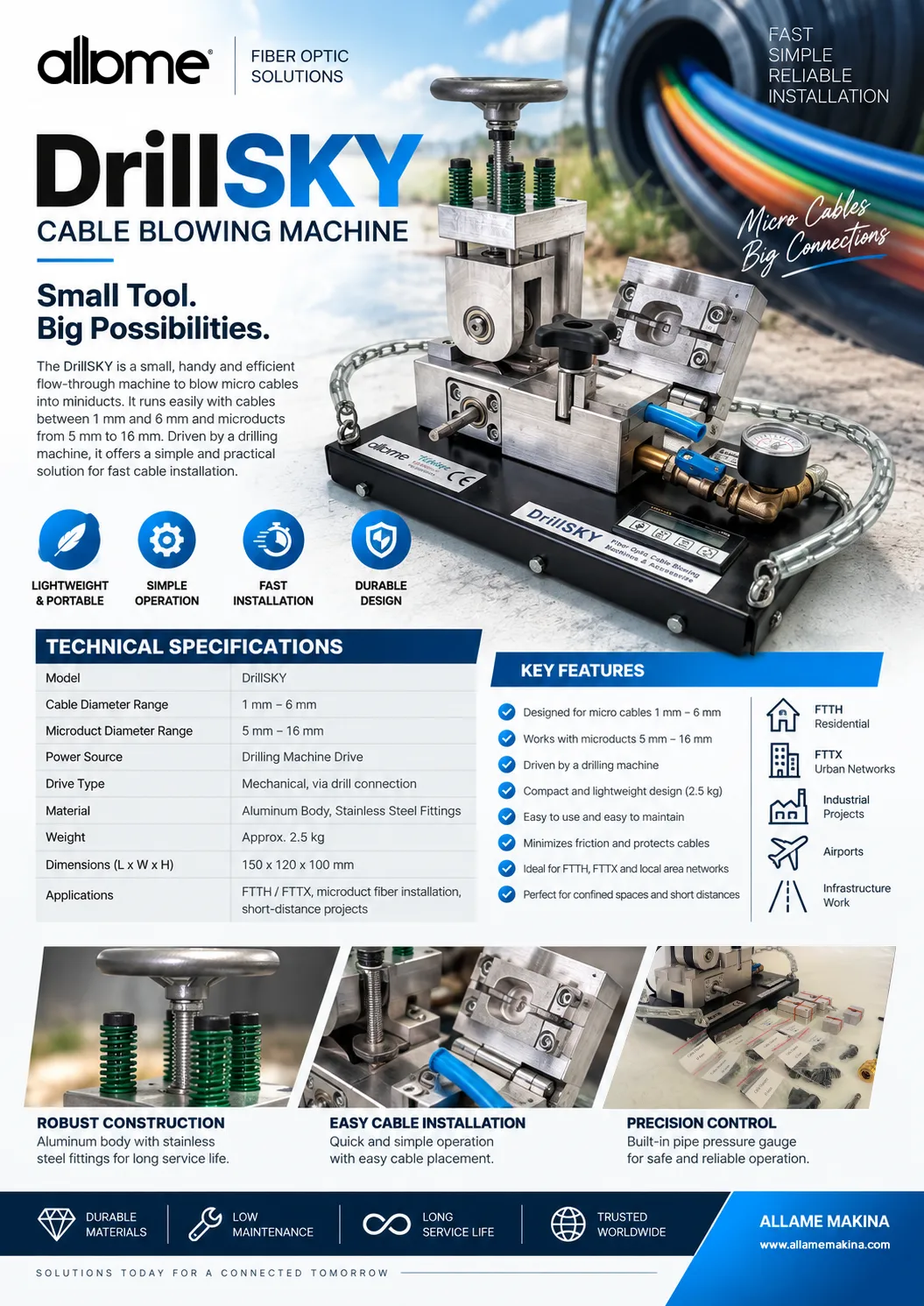

DrillSKY General Features

• It works with a Rechargeable Drill
• There is a digital meter counter.
• Hydraulic seal is provided according to the cable size.
• Forward / backward steering capability.
• Made from durable steel material.
• As it is small and easy to use, a great amount of time is saved.
• All the spare parts you need are included in the package.
• If there is a technical problem in the vehicle you rented, we kindly request you to contact our Full Support Line.
• 2 year service warranty
• 10 years spare parts warranty
• Waterproof Marine Storage Box

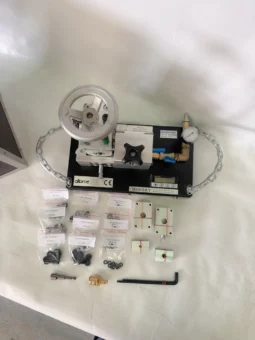

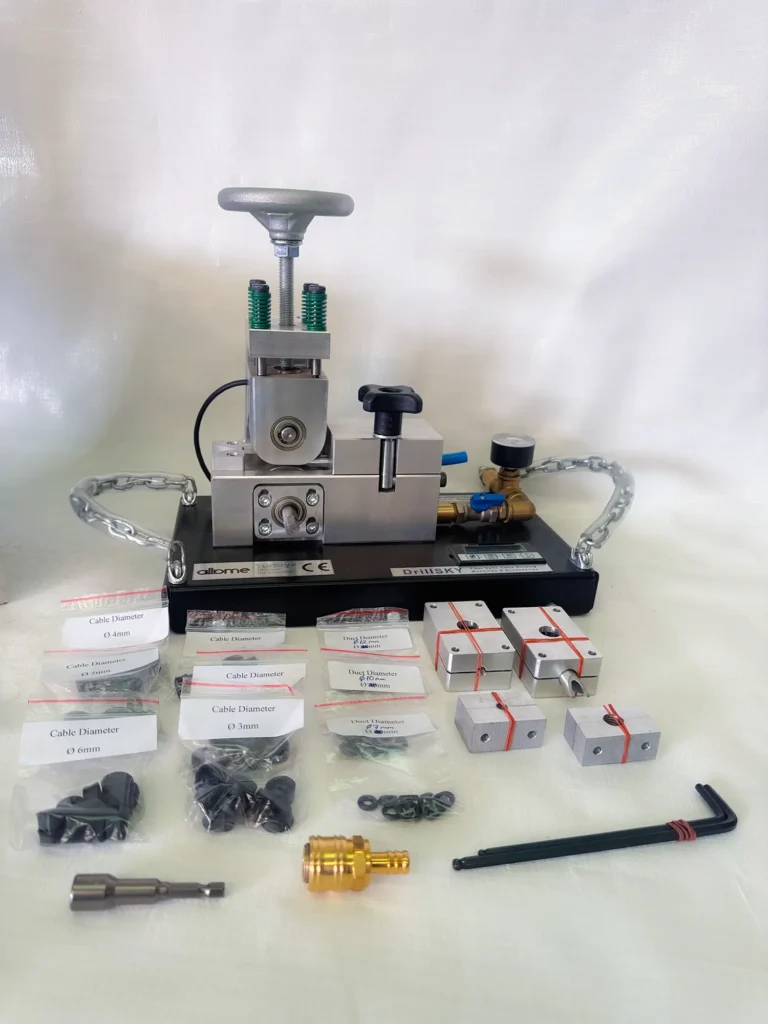

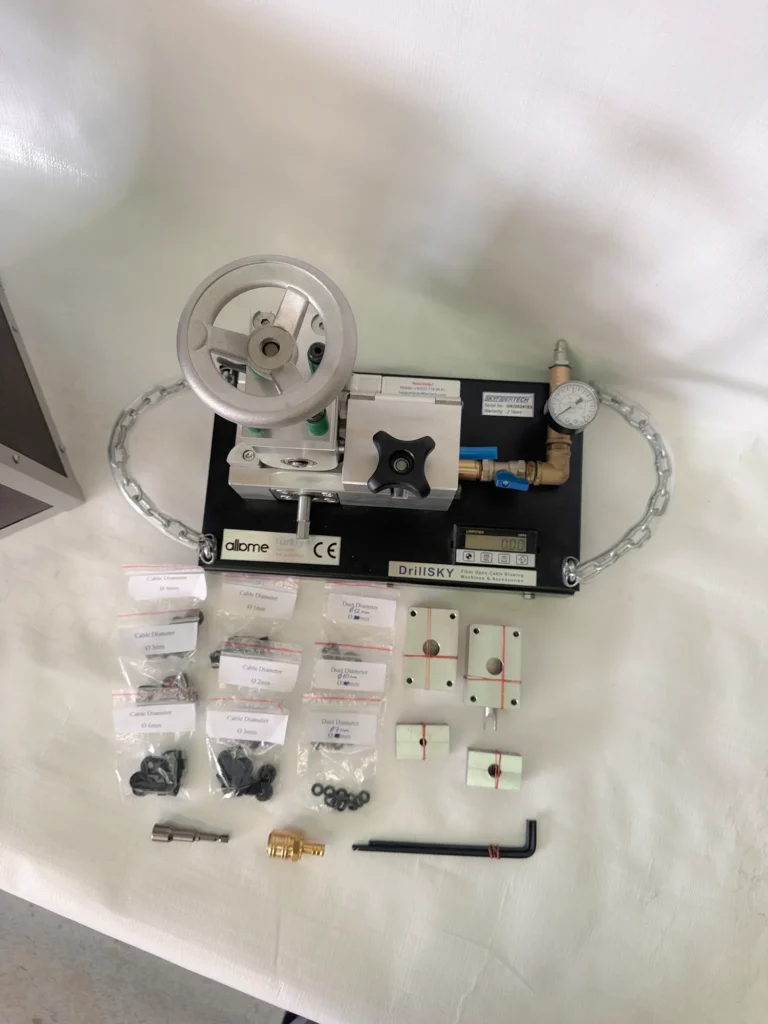

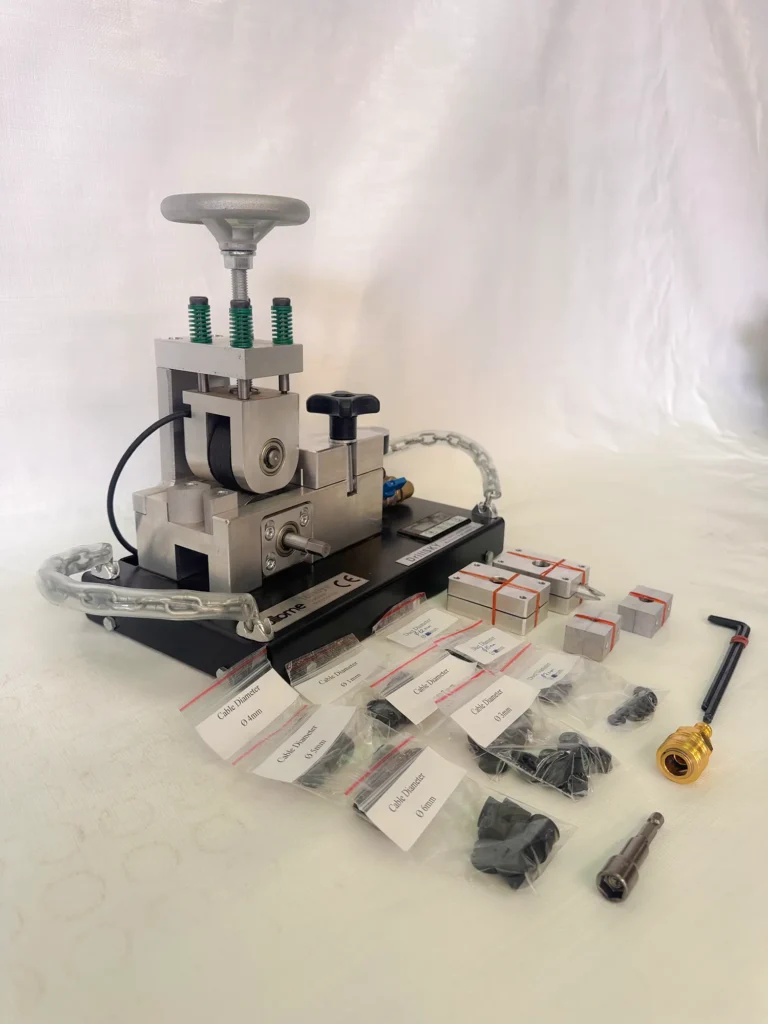

DrillSKY Standart Package

• Cable Nutrings (each cable diameter 5 pcs)
• Duct adapeter set (Required your duct diameters)
• Drilling machine coupler for DrillSKY
• O-Rings
• 1mm-3mm cable bed (Enter and Exit)
• 4mm-6mm cable bed (Enter and Exit)
• Allen sets for bolts
• Compressor hose adapter (Coupler)
• Accessories box

Microduct Cable Blowing Machine was developed by Allame Makine. Depending on the request, designs suitable for the project conditions can be used.

You save time and costs with our DrillSKYfiber cable blowing machines in your Indoor and Outdoor FTTH (Fiber to the Home) projects. Please contact us for further information.
