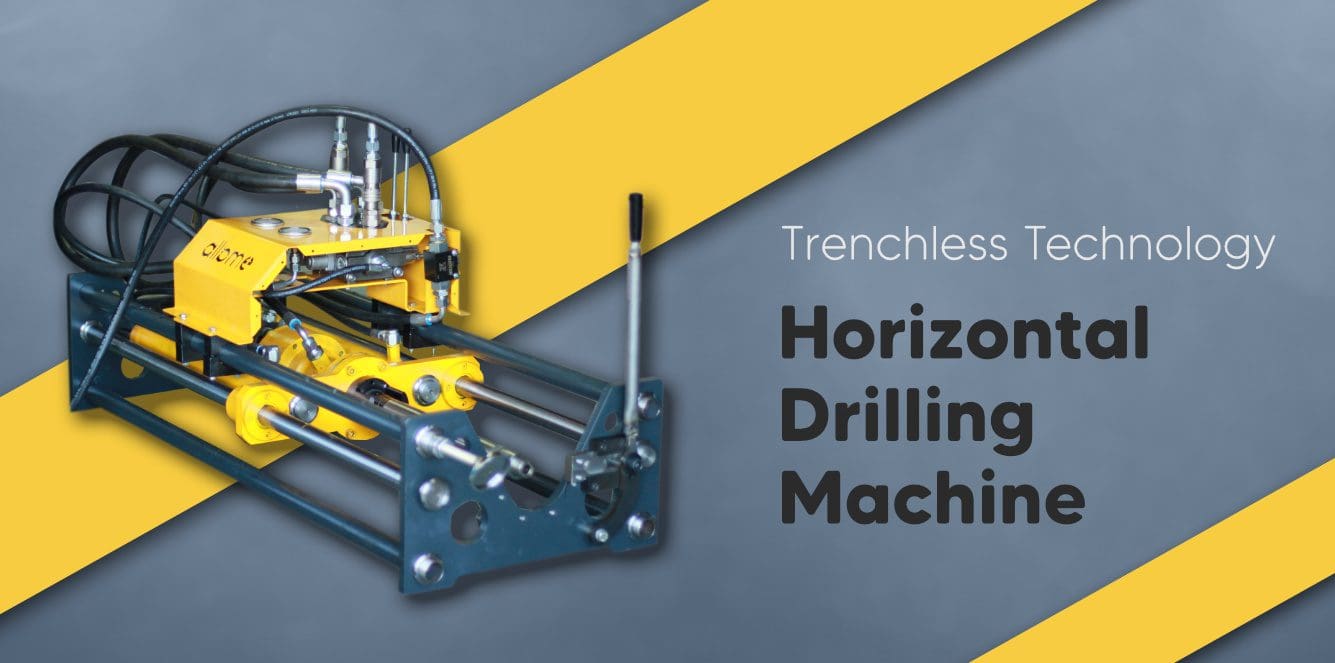

Horizontal Drilling Machine Technicial Specifications
|
PERFORMANCE DATA |
METRIC |
|
Thrust and pullback force |
55 kN |
|
Installation speed (without load) |
5 m/min |
|
Max. Torque |
1.500 Nm |
|
Max. spindle speed |
130 rpm |
|
Sllurry pump (not included) Mixture %30 |
40 l/min |
|
Bore rod |
Ø 50 mm |
|
Effective rod length |
500 mm |
|
Rod weight |
5,1 kg |
|
Pilot hole |
Ø 60 mm |
|
Min. drilling radius |
36 m |
|
Length (transport position) |
1450 mm |
|
Width (transport position) |
650 mm |
|
Height (transport position) |
750 mm |
|
Length (working position) |
1450 mm |
|
Width (working position) |
900 mm |
|
Height (working position) |
1450 mm |
|
Max. weight |
390 kg |
|
Upsizing Ø, depending on ground |
≤ 240 mm |
|
Outer pipe Ø, depending on ground |
≤ 200 mm |
|
Bore length, depending on ground |
≤ 50 m |
|
Required hydraulic fluid volume without |
50 l/min |
|
Required hydraulic fl uid volume with |
60 l/min |
|
Required max. hydraulic fl uid pressure |
250 bar |
